BRIDGEWATER DISCOVERY
DP2 GEOTECHNICAL SURVEY VESSEL
With more than five decades of operations, Kim Heng has developed a wide range of capabilities in the offshore renewable, marine, as well as oil and gas industries, specialising in engineering, procurement, construction and installation support for these sectors. Its two shipyards in Singapore have a combined waterfront of 205 metres.
Adira Renewables Pte Ltd, the wholly-owned subsidiary of Kim Heng together with Soiltech Engineering Co Ltd Korea (“STE”) had signed a vessel framework agreement (“VFA”) with an international major client where Kim Heng and STE will provide offshore geotechnical investigation services to carry out various geotechnical survey projects for offshore windfarm development in Korea.
Through the collaboration, Kim Heng will also benefit by executing geotechnical survey works in the pre-construction phase of larger, more complex offshore windfarm projects tapping on STE know-how in soil investigation works.

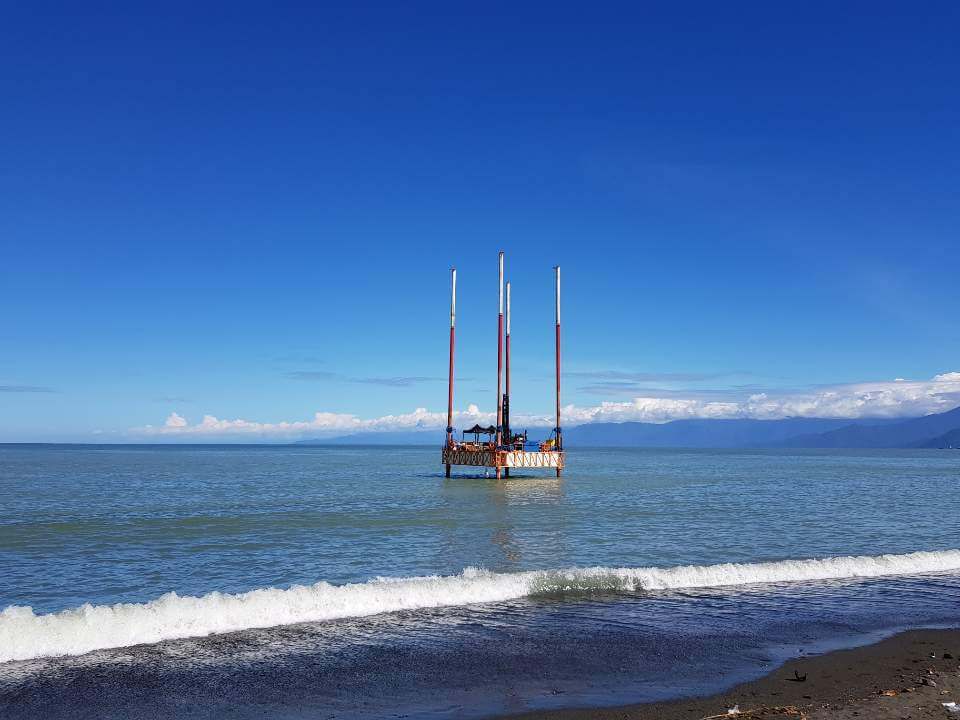

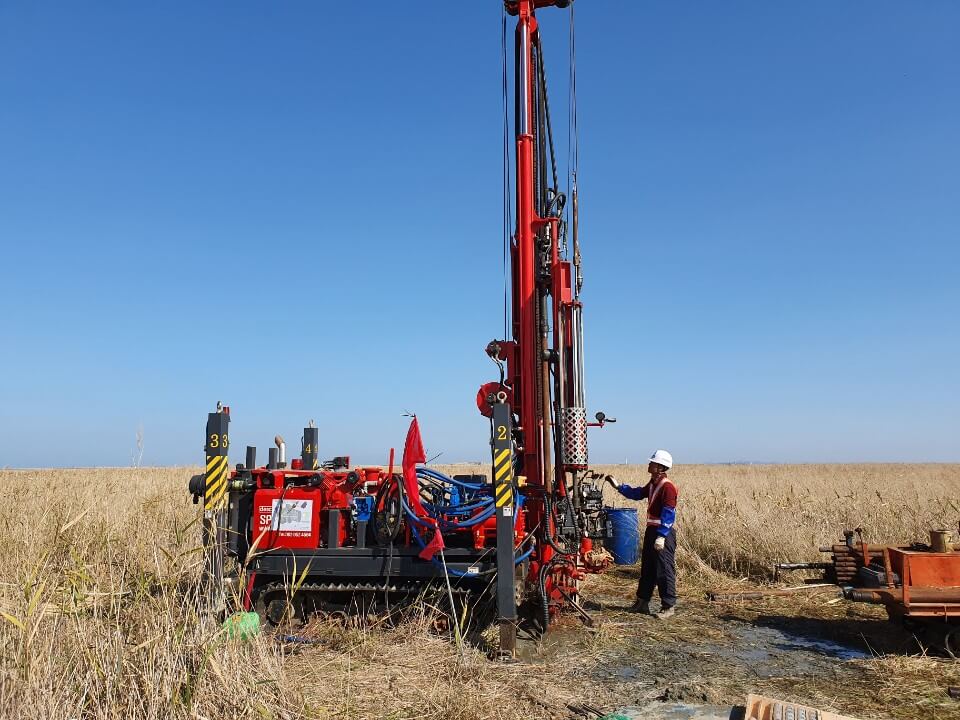

STE owns and operates various nearshore survey platforms such as SEP barges, crane barges, pontoons and screw barges as well as onshore drill rigs and fully-accredited onshore soil laboratory.
With twenty-six (26) years of extensive local experience of STE, the windfarm developers will be assisted in permitting and stakeholder management as well.

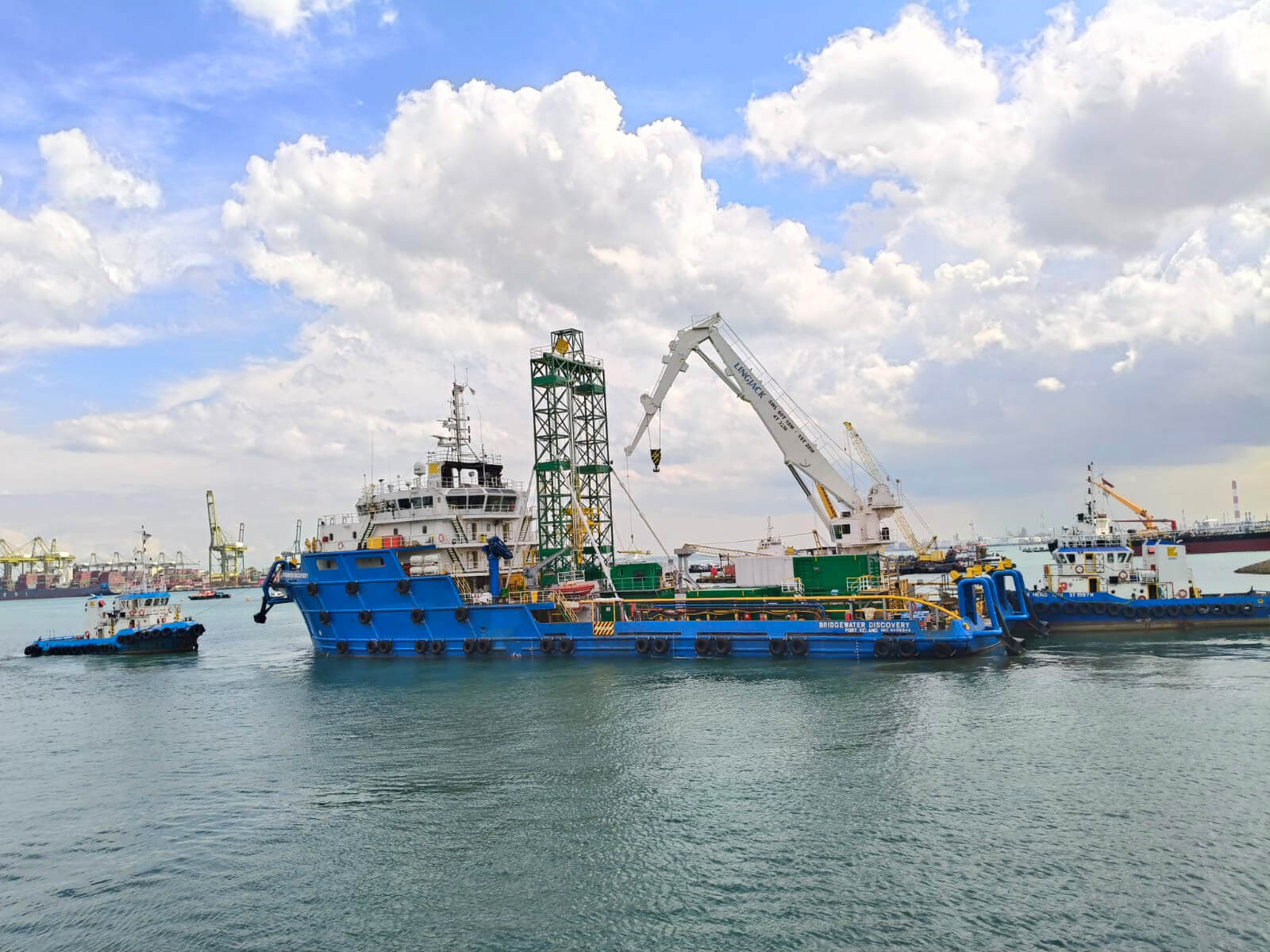

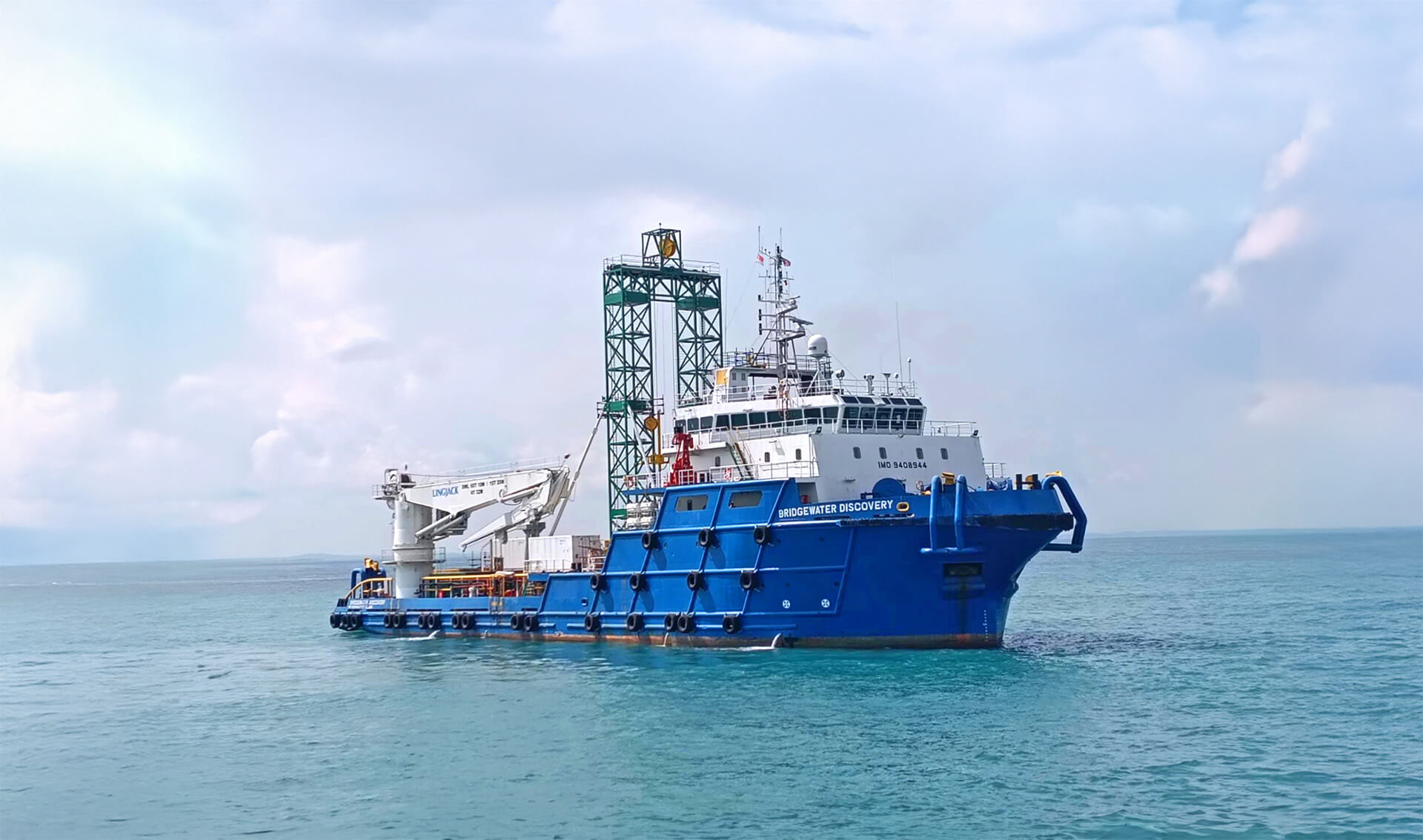

The fully-dedicated survey vessel, Bridgewater Discovery, will be Korean-flagged and equipped with a new-built drill rig.

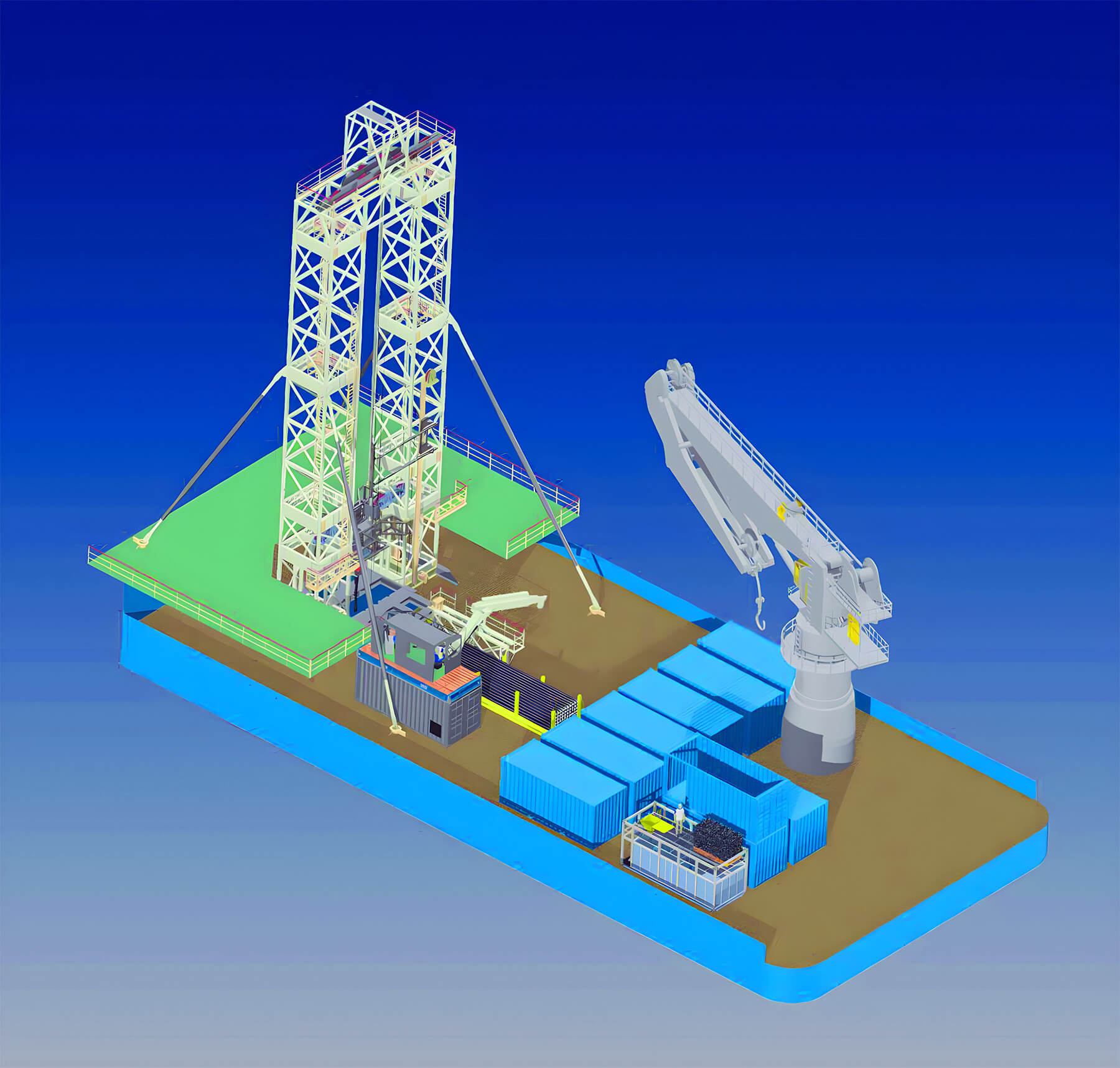

The drill rig’s specification includes, but not limited to :
- Automation of the drilling system assuring the efficient and safe operation.
- BOP and gas diverter within a Top-drive system for shallow gas response.
- Specialized testing equipment including Seismic CPT and in-situ thermal conductivity.
- Real-time drilling parameter measurement for precise drilling operation.
- Mode change from downhole mode to seabed mode or vice versa at sea.
- 60MT main crane providing versatility during surveys
KEY GEOTECHNICAL
SURVEY VESSEL HIGHLIGHTS
- DP2 vessel re-built/converted 2024
- 76m Geotechnical vessel with wide 20m beam
- Offshore 60t knuckle boom crane (w/man riding)
- Accommodation for 59 pax, including soil lab
- Heave compensated Twin Tower drilling rig
- Drilling up to 300m water depth
- Drilling capacity to 300m below seabed

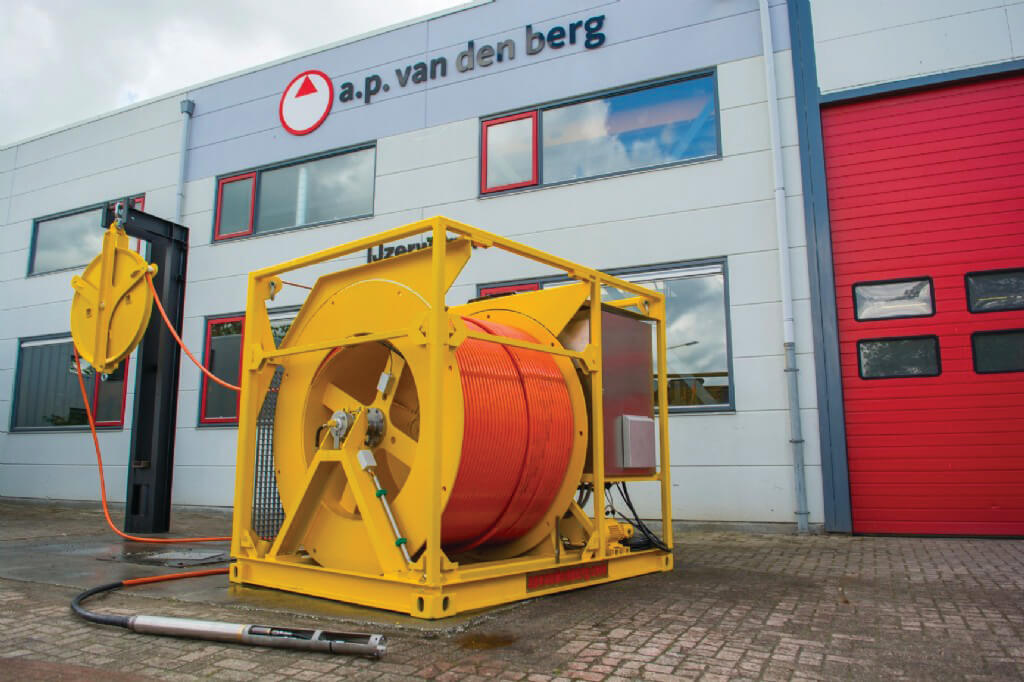

- WISON-APB-CLASSIC CPT and Seismic CPT
- Robertson Geo PS-Logger

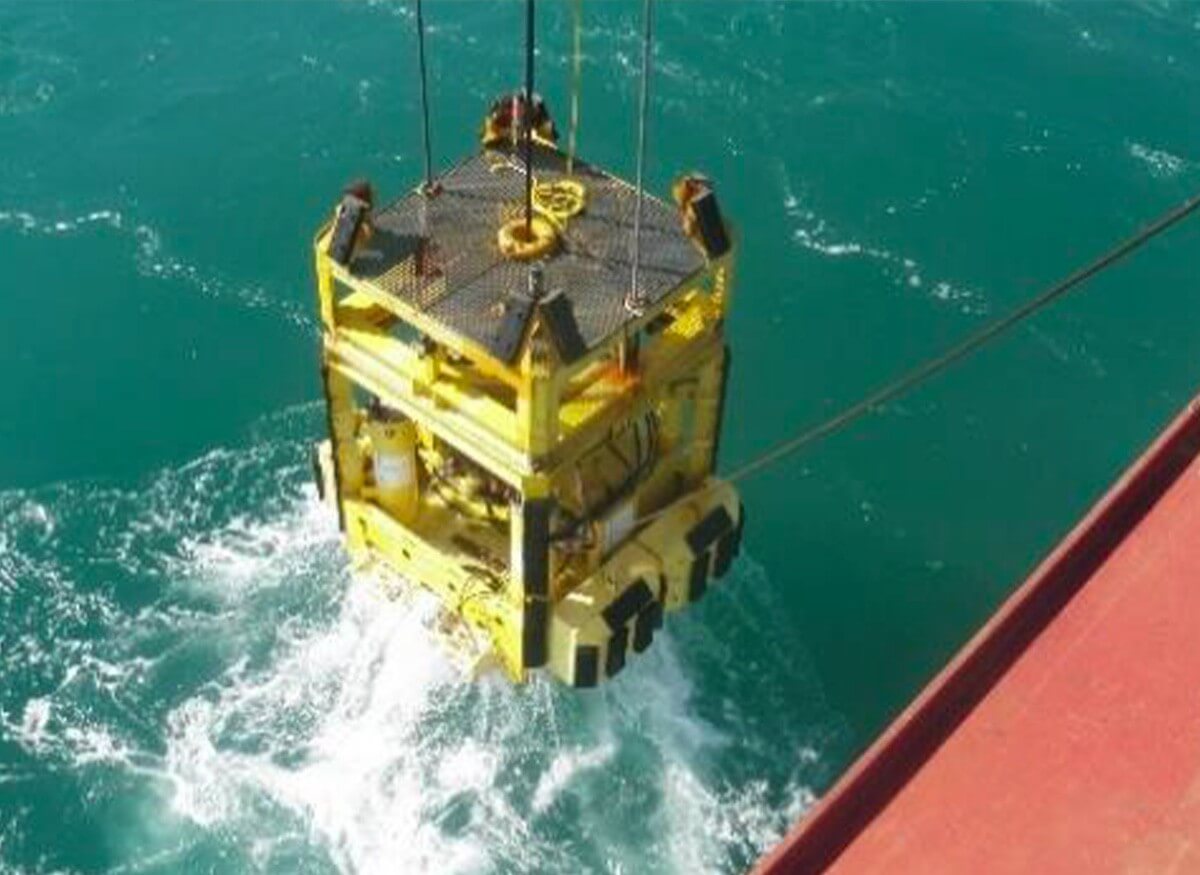

- Geomil Manta 200 Seabed CPT System
- Vibrocore system
- Kongsberg 452 HiPAP system

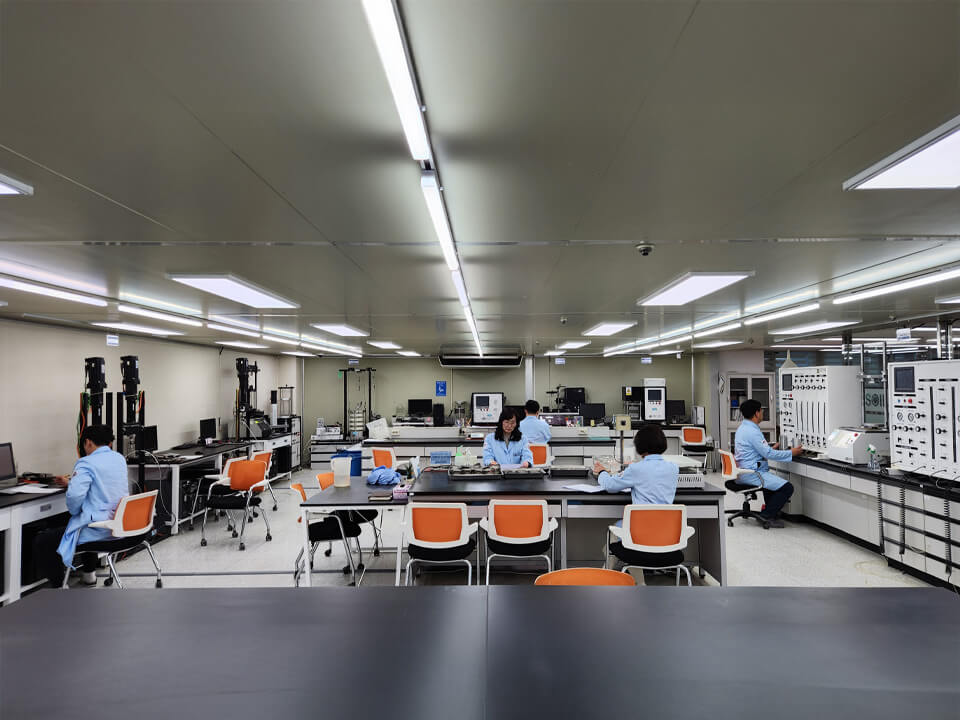

GEOTECHNICAL LABORATORY
Laboratory Floor Area: | 55m2 |
Test Sample Storage | 20ft Reefer Container |
DRILLING SYSTEM
Drilling Rig: | Twin Tower 50t SWL |
Power Swivel: | Puntel 13500 Nm @ 64 rpm |
Derrick Height: | 24m |
Max drilling water depth: | 300m |
Max seabed drill depth: | 300m |
Max Drill String length: | 600m |
Drilling pipe diameter: | 5½” or 6⅝” API drill string |
Pipe Handling System: | Knuckle boom pipe handler |
Main Winch Draw Works: | 30t |
Heave Compensation: | 4m stroke |
Mud Package System: | 1 x GD Duplex Pump, 20ft dual comp mixing |
Drilling Monitoring: | Real Time Monitoring (Jean Lutz France) |
DOWNHOLE CPT AND SAMPLING
CPT System: | WISON-APB-Classic |
CPT Pushing Force Capacity: | 50kN 3m stroke, 100kN 1m stroke |
Seismic CPT System: | APB digital with P and S wave hammer |
Soil Sampling: | 100 kN 1 m stroke PQ3 wireline sampling |
Insitu Testing: | Robertson Geo PS Wireline logging |
MAIN PARTICULARS
Conversion / Re-Build Year: | Singapore / 2024 |
Flag Registry: | Singapore / Korean |
Class: | RINA / KR |
GRT / NRT: | 3499 / 1099 |
Dimensions (L x W): | 76m x 20m, operating draft of 4.6 m |
DP2 System: | MT Bridge Mate DP2 system |
Reference systems: | 2 x Kongsberg DPSi1 High Performance GNSS, 1 x SpotTrac Laser, 1 x Taut Wire |
Positioning system: | 4 - point mooring system |
Accommodation: | 59 pax |
Endurance: | Typically 40 days |
Transit Speed: | Approx. 10kts |
SEABED SAMPLING TOOLS
CPT System: | Geomil Manta 200 |
Seabed Sampling System: | Vibrocore with sample depth of 3 or 6 m |
